003N8247

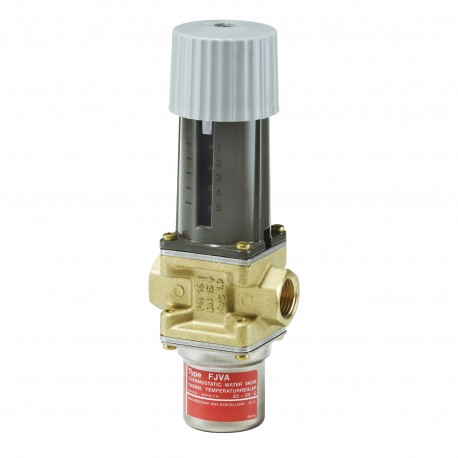

003N8247 DANFOSS REFRIGERATION Thermo. operated water valve, FJVA 15
$0.00USD
4597 in stock
Key Specifications
EAN:5702423079308
Media:Neutral media
Approval:EACLLC CDC TYSKPEDRoHSRoHS China
Net weight:1.19 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423079308 |
| Media | Neutral media |
| Approval | EACLLC CDC TYSKPEDRoHSRoHS China |
| Net weight | 1.19 Kg |
| Gross weight | 1.34 Kg |
| Product name | Thermo. operated water valve |
| Product type | FJVA 15 |
| Body material | Brass |
| Product Group | Water regulating valves |
| Packing format | Multi pack |
| Connection type | G |
| Bypass (Ø) [in] | 7/128 in |
| Bypass (Ø) [mm] | 1.5 mm |
| Kv value [m³/h] | 1.9 m3/h |
| Orifice size [mm] | 15 mm |
| Cv value [gal/min] | 2.2 gal/min |
| Connection standard | ISO 228-1 |
| Product description | Thermostatic valve |
| Connection size [in] | 1/2 |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size fraction [in] | 3/5 in |
| Max. Working Pressure [bar] | 16 bar |
| Quantity per packing format | 10 pc |
| Connection Internal/External | Internal |
| Max. Working Pressure [psig] | 232 psig |
| Temperature range [°C] [Max] | 65 °C |
| Temperature range [°C] [Min] | 25 °C |
| Temperature range [°F] [Max] | 149 °F |
| Temperature range [°F] [Min] | 77 °F |
| Differential pressure [bar] [Max] | 10 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 0 psi |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
Product Description
Thermostatic water valve, FJVA 15, G, 1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
