003N5141

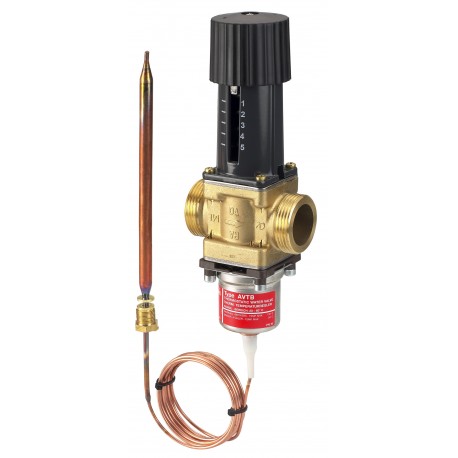

003N5141 DANFOSS HEATING AVTB PN16 15/1,9 30-100 2,3m ext G fl/re
$0.00USD
3333 in stock
Key Specifications
EAN ():5702421100646
Type ():AVTB
Volume ():4.357 Liter
Function ():Temp. controller
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421100646 |
| Type () | AVTB |
| Volume () | 4.357 Liter |
| Function () | Temp. controller |
| Net weight () | 1.493 Kilogram |
| Valve size () | DN 15 |
| Description () | AVTB 15 Thermostatic valve 30-100#C |
| Flow control () | No |
| Gross weight () | 1.572 Kilogram |
| Diameter [mm] () | 15 mm |
| Product group () | Temperature controllers |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 16 |
| Connection size () | G 3/4 A |
| Number of ports () | 2 |
| Connection types () | External Thread |
| Function VSP - P () | No |
| Function VSP - Q () | No |
| Function VSP - T () | Yes |
| Mounting version () | Free |
| Approval standard () | ETA VA 1.54/18952 |
| Cavitation factor () | 0.4 |
| Permissible media () | District heating/cooling circulation water |
| Sensor connection () | M14x1 / R1/2 ext thread acc. DIN 2999 |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 1.9 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 10 |
| UK RoHS compliance () | Out of scope |
| Connection standard () | ISO 228/1 |
| Flow characteristic () | Linear |
| Temperature control () | Yes |
| Time constant [sec] () | 25 " |
| Valve body material () | DZR brass BS 2872/CZ132 |
| Valve cone material () | NBR rubber |
| Valve seat material () | Cr Ni steel W.no 1.4301 |
| China RoHS compliance () | Out of scope |
| Impulse tube material () | Copper mat. No 2.0090 |
| Pressure nominal [bar] () | 16 bar |
| Rection time open [sec] () | 25 " |
| Return limiter function () | No |
| EU RoHS exemption clause () | 6(c) |
| Rection time close [sec] () | 25 " |
| Capillary tube length [m] () | 2.3 m |
| Cone /seat sealing material () | NBR / DZR brass BS 2872 / CZ132 |
| Temperature sensor material () | Copper mat. No 2.0090 |
| Media temperature [°C] [Max] () | 130 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Temperature sensor length [mm] () | 150 mm |
| Ambient temperature [°C] [max] () | 70 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temperature sensor diameter [mm] () | 9.5 mm |
| Transport temperature [°C] [Max] () | 50 °C |
| Transport temperature [°C] [Min] () | -20 °C |
| Temperature setting range [°C] [Max] () | 100 °C |
| Temperature setting range [°C] [Min] () | 30 °C |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 10 bar |
| Media temperature at sensor [°C] [Max] () | 130 °C |
Product Description
AVTB, PN 16, DN 15, 1.90 m³/h, 30 °C - 100 °C, 2.3 m, External Thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AVTB 15 Thermostatic valve 30-100#C
