003N4100

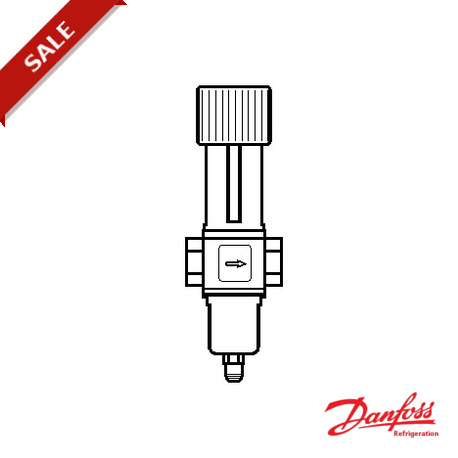

003N4100 DANFOSS REFRIGERATION Pressure operated water valve
$0.00USD
4620 in stock
Key Specifications
EAN:5702422048015
Media:Fresh waterNeutral brine
Approval:C UL US LISTEDEACLLC CDC TYSKPEDRoHSRoHS China
Model no.:TL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422048015 |
| Media | Fresh waterNeutral brine |
| Approval | C UL US LISTEDEACLLC CDC TYSKPEDRoHSRoHS China |
| Model no. | TL |
| Net weight | 1.27 Kg |
| Serviceable | Water valve spare parts |
| Gross weight | 1.46 Kg |
| Product name | Pressure operated water valve |
| Product type | WVFX 25 |
| Refrigerants | R1270R1290R134aR22R290R404AR407AR407CR407FR422BR422DR448AR449AR450AR452AR507AR513AR600R600a |
| Body material | Brass |
| Product Group | Water regulating valves |
| Packing format | Multi pack |
| Connection type | G |
| Kv value [m³/h] | 5.5 m3/h |
| Outlet size [mm] | 25 mm |
| Orifice size [mm] | 25 mm |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] | 6.4 gal/min |
| Connection standard | ISO 228-1 |
| Product accessories | Generic accessoriesWater valves accessories |
| Product description | Water valve |
| Product family name | WVFX |
| Connection size [in] | 1 |
| Opening configuration | Opens on rising cond. pressure |
| MWP (refrigerant) [bar] | 26.4 bar |
| System line application | CondenserEvaporator |
| Max. Pressure drop [bar] | 10 bar |
| Max. Pressure drop [psi] | 145 psi |
| Max. test pressure [psig] | 348 psig |
| Orifice size fraction [in] | 1 in |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| Max. Working Pressure [bar] | 16 bar |
| Max. test pressure [bar] Pe | 24 bar |
| Quantity per packing format | 10 pc |
| Connection Internal/External | Internal |
| Max. Working Pressure [psig] | 232 psig |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection type (refrigerant) | SAE flare |
| Max.test press.(refrig.)[bar] | 29 bar |
| Max.test press.(refrig.)[psig] | 420.6 psig |
| Control pressure range [bar] [Max] | 16 bar |
| Control pressure range [bar] [Min] | 3.5 bar |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
Product Description
WVFX 25 Water Reg. Valve 3.5-16 bar M/10
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
