003N3105

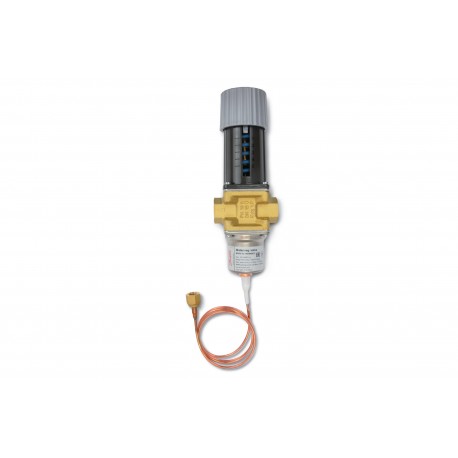

003N3105 DANFOSS REFRIGERATION Pressure operated water valve
$0.00USD
3772 in stock
Key Specifications
EAN ():5702422035886
Type ():WVFX 20
Media ():Fresh waterNeutral brine
Volume ():4.03 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422035886 |
| Type () | WVFX 20 |
| Media () | Fresh waterNeutral brine |
| Volume () | 4.03 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSKPEDRoHSRoHS China |
| Net weight () | 1.225 Kg |
| Serviceable () | Water valve spare parts |
| Gross weight () | 1.406 Kg |
| Refrigerants () | R134aR22R404AR407AR407CR407FR422BR422DR448AR449AR450AR452AR507AR513AR407HR449BR454CR455AR515BR516AR1234yfR454A |
| Body material () | Brass |
| Product group () | Water regulating valves |
| Packing format () | Multi pack |
| Connection type () | G |
| Kv value [m³/h] () | 3.4 m³/h |
| SCIP dossier no. () | f7d782f1-04df-4c40-bfe2-ea3a06dce79f |
| Orifice size [mm] () | 20 mm |
| Approval file name () | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] () | 3.9 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection standard () | ISO 228-1 |
| Product accessories () | Generic accessoriesWater valves accessories |
| Connection size [in] () | 3/4 |
| Oil free refrigerants () | R513A |
| Opening configuration () | Opens on rising cond. pressure |
| MWP (refrigerant) [bar] () | 26.4 bar |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Pressure operated water valve |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR407HR422BR422DR448AR449AR449BR450AR452AR507AR513AR515BR516A |
| Max. test pressure [psig] () | 348 psig |
| SCIP dossier product name () | WVS/WVTS |
| Orifice size fraction [in] () | 4/5 in |
| Differential pressure [bar] () | 10 bar |
| Differential pressure [psi] () | 145 psi |
| Max. Working Pressure [bar] () | 16 bar |
| Max. test pressure [bar] Pe () | 24 bar |
| Quantity per packing format () | 10 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 232 psig |
| Connection size (refrigerant) () | 1/4 in - 6 mm |
| Connection type (refrigerant) () | SAE flare |
| Max.test press.(refrig.)[bar] () | 29 bar |
| Max.test press.(refrig.)[psig] () | 420.6 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Control pressure range [bar] [max] () | 23 bar |
| Control pressure range [bar] [min] () | 4 bar |
| Medium temperature range [°C] [max] () | 130 °C |
| Medium temperature range [°C] [min] () | -25 °C |
| Medium temperature range [°F] [max] () | 266 °F |
| Medium temperature range [°F] [min] () | -13 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
WVFX 20 Water Reg. Valve 4-23 bar M/10
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection type: G, Connection size [in]: 3/4, Kv value [m³/h]: 3.400, Opening configuration: Opens on rising cond. pressure, Control pressure range [bar]: 4.00 - 23.00, Connection size (refrigerant): 1/4 in - 6 mm, Connection type (refrigerant): SAE flare
