003N0080

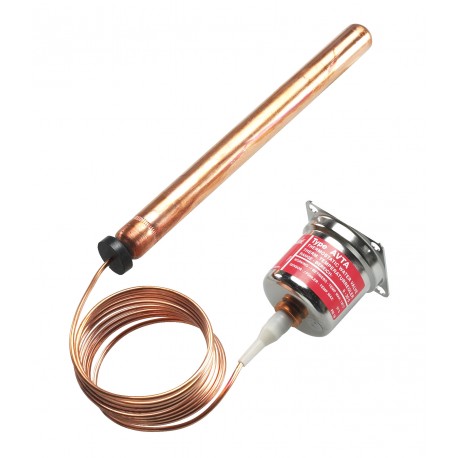

003N0080 DANFOSS CONTROLES INDUSTRIALES Thermostatic element AVTA
$0.00USD
4160 in stock
Key Specifications
EAN ():5702423014262
Type ():Spare part
Volume ():2.076 Liter
Net weight ():0.159 Kilogram
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423014262 |
| Type () | Spare part |
| Volume () | 2.076 Liter |
| Net weight () | 0.159 Kilogram |
| Charge type () | Universal |
| Gross weight () | 0.546 Kilogram |
| Product group () | Water valves spare parts |
| Packing format () | Multi pack |
| SCIP dossier no. () | d0092edb-0ce7-409a-9808-fda08274cc60 |
| Type designation () | Thermostatic element |
| Used for product () | AVTAAVTB |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| China RoHS compliance () | Yes |
| Product Name Description () | Thermostatic element |
| Sensor size (Ø x L) [in] () | 23/32 x 8 1/4 in |
| Sensor size (Ø x L) [mm] () | 18 x 210 mm |
| Capillary tube length [mm] () | 5000 mm |
| Quantity per packing format () | 20 pc |
| Max. sensor temperature [°C] () | 90 °C |
| Max. sensor temperature [°F] () | 194 °F |
| Cap. tube length fraction [in] () | 196 3/4 in |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temp. range AVTB/FJV [°C] [max] () | 60 °C |
| Temp. range AVTB/FJV [°C] [min] () | 20 °C |
| Temp. range AVTB/FJV [°F] [max] () | 140 °F |
| Temp. range AVTB/FJV [°F] [min] () | 68 °F |
| Temp. range AVTA/FJVA [°C] [max] () | 65 °C |
| Temp. range AVTA/FJVA [°C] [min] () | 25 °C |
| Temp. range AVTA/FJVA [°F] [max] () | 149 °F |
| Temp. range AVTA/FJVA [°F] [min] () | 77 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Spare part, AVTB; AVTA, Thermostatic element
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Type: Spare part, Used for product: AVTB; AVTA, Type designation: Thermostatic element, Thermostatic element
