003N0063

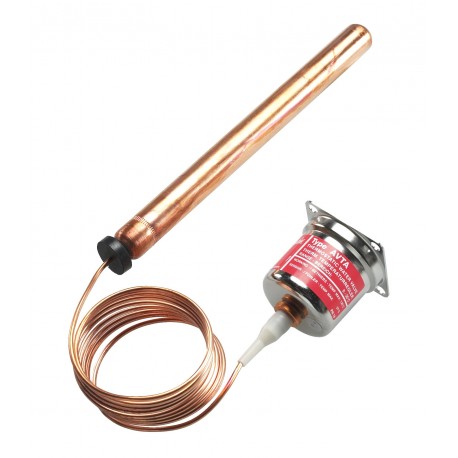

003N0063 DANFOSS CONTROLES INDUSTRIALES Type: SPARE PART, Type designation: Thermostatic element
$0.00USD
4121 in stock
Key Specifications
EAN:5702423005581
Armoring:Yes
Net weight:0.69 Kg
Charge type:Universal
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423005581 |
| Armoring | Yes |
| Net weight | 0.69 Kg |
| Charge type | Universal |
| Gross weight | 0.69 Kg |
| Product type | Spare part |
| Packing format | Multi pack |
| Type designation | Thermostatic element |
| Used for product | AVTAAVTB |
| Product family name | AVTA |
| Sensor size (Ø x L) [in] | 23/32 x 8 1/4 in |
| Sensor size (Ø x L) [mm] | 18 x 210 mm |
| Capillary tube length [mm] | 2000 mm |
| Quantity per packing format | 6 pc |
| Max. sensor temperature [°C] | 90 °C |
| Max. sensor temperature [°F] | 194 °F |
| Cap. tube length fraction [in] | 78 3/4 in |
| Temp. range AVTB/FJV [°C] [Max] | 60 °C |
| Temp. range AVTB/FJV [°C] [Min] | 20 °C |
| Temp. range AVTB/FJV [°F] [Max] | 140 °F |
| Temp. range AVTB/FJV [°F] [Min] | 68 °F |
| Temp. range AVTA/FJVA [°C] [Max] | 65 °C |
| Temp. range AVTA/FJVA [°C] [Min] | 25 °C |
| Temp. range AVTA/FJVA [°F] [Max] | 149 °F |
| Temp. range AVTA/FJVA [°F] [Min] | 77 °F |
