In Stock Hot Product
003L7696

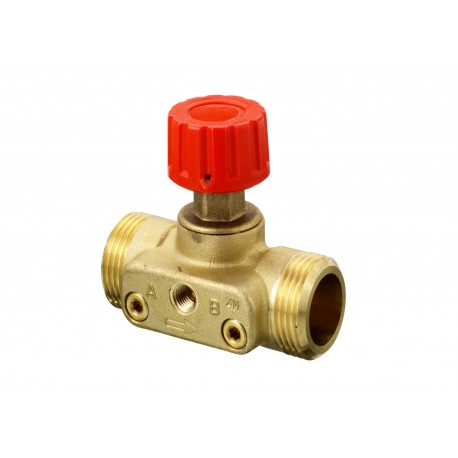

003L7696 DANFOSS HEATING ASV-M DN 15 EXTERNALTHREAD
$0.00USD
4818 in stock
Key Specifications
EAN ():5702421528112
Type ():ASV-M
Volume ():1.835 Liter
Net weight ():0.308 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421528112 |
| Type () | ASV-M |
| Volume () | 1.835 Liter |
| Net weight () | 0.308 Kilogram |
| Valve size () | DN 15 |
| Description () | ASV-M DN 15, external thread, shut-off valve |
| Gross weight () | 0.316 Kilogram |
| Product group () | Automatic balancing |
| Setting scale () | No |
| Drain function () | No |
| Pressure class () | PN 16 |
| Flow limitation () | Yes |
| Connection types () | External Thread |
| SCIP dossier no. () | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| Mounting position () | Supply pipe |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 1.6 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Brass |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | "ASV-I/M" |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure over the valve [kPa] [Max] () | 150 KPa |
Product Description
ASV-M, DN 15, External Thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ASV-M DN 15, external thread, shut-off valve
