In Stock Hot Product
003L6028

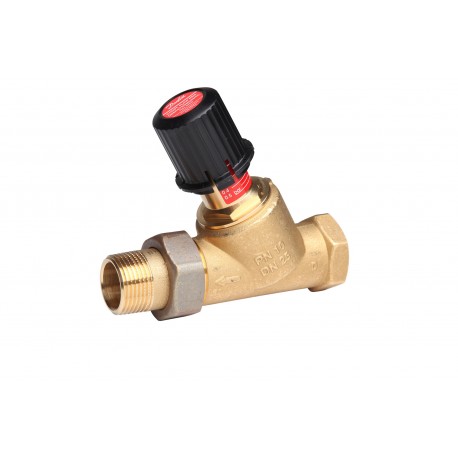

003L6028 DANFOSS HEATING AVDO 25 L (green spring)
$0.00USD
3611 in stock
Key Specifications
EAN ():5702420018065
Type ():AVDO
Design ():Straight
Volume ():1.092 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420018065 |
| Type () | AVDO |
| Design () | Straight |
| Volume () | 1.092 Liter |
| Net weight () | 1.16 Kilogram |
| Valve size () | DN 25 |
| Connections () | 1" |
| Description () | Self-acting constant flow valve |
| Gross weight () | 1.208 Kilogram |
| Product group () | Automatic Bypass Control |
| Connection types () | Threaded |
| SCIP dossier no. () | 7b37c0d6-8f7d-4b5c-b1b0-5f93cc0ad594 |
| Connection size in () | Rp 1 |
| EU RoHS compliance () | Yes with exemptions |
| Connection size out () | R 1 |
| Setting [bar] [Max] () | 0.5 bar |
| Setting [bar] [Min] () | 0.05 bar |
| Inlet connection type () | Internal thread |
| Outlet connection type () | External thread |
| SCIP dossier product name () | AVDO COMMERCIAL 25 |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 0.5 bar |
Product Description
Automatic Bypass Control, AVDO, DN 25, Straight, Internal thread, External thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Self-acting constant flow valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
