In Stock Hot Product
003L6008

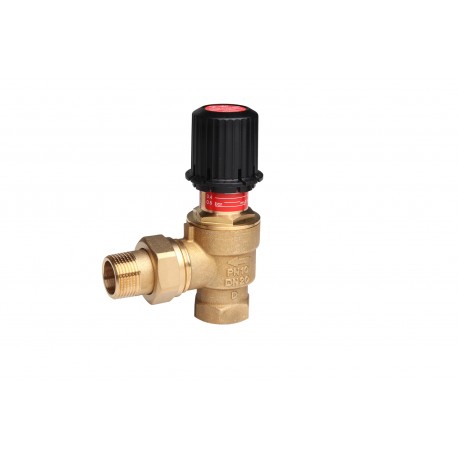

003L6008 DANFOSS HEATING AVDO20 CONSTANT FLOW CONT.
$0.00USD
4898 in stock
Key Specifications
EAN ():5702420017129
Type ():AVDO
Design ():Angle
Volume ():1.06 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420017129 |
| Type () | AVDO |
| Design () | Angle |
| Volume () | 1.06 Liter |
| Net weight () | 0.768 Kilogram |
| Valve size () | DN 20 |
| Connections () | 3/4" |
| Description () | Self-acting constant flow valve |
| Gross weight () | 0.8 Kilogram |
| Product group () | Automatic Bypass Control |
| Connection types () | Threaded |
| SCIP dossier no. () | 8d736b0d-4ef5-4b75-a470-3b3ad31b8da6 |
| Connection size in () | Rp 3/4 |
| EU RoHS compliance () | Yes with exemptions |
| Connection size out () | R 3/4 |
| Setting [bar] [Max] () | 0.5 bar |
| Setting [bar] [Min] () | 0.05 bar |
| Inlet connection type () | Internal thread |
| Outlet connection type () | External thread |
| SCIP dossier product name () | AVDO COMMERCIAL 20 |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 0.5 bar |
Product Description
Automatic Bypass Control, AVDO, DN 20, Angle, Internal thread, External thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Self-acting constant flow valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
