In Stock Hot Product
003L0421

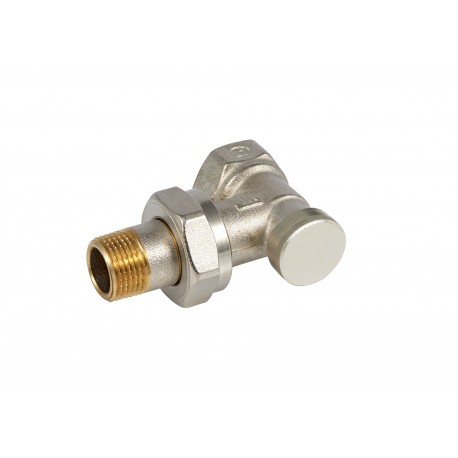

003L0421 DANFOSS HEATING RLV-S 10 angle, nipple w. o-ring
$0.00USD
4918 in stock
Key Specifications
EAN ():5702425113383
Type ():RLV-S
Design ():Angle
Finish ():Nickel plated
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425113383 |
| Type () | RLV-S |
| Design () | Angle |
| Finish () | Nickel plated |
| Volume () | 0.095 Liter |
| Surface () | Nickel plated |
| Net weight () | 0.13 Kilogram |
| Valve size () | DN 10 |
| Description () | RLV-S 10 ANGLE, NIPPLE W. O-RING |
| Gross weight () | 0.13 Kilogram |
| Label product () | Yes |
| Product group () | Lockshield Valves |
| Tailpiece type () | With o-ring |
| Connection types () | Internal thread |
| SCIP dossier no. () | 7137db49-55ea-470c-ba5d-28b3fb1ea9e6 |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 1.5 m³/h |
| UK RoHS compliance () | Out of scope |
| Test pressure [bar] () | 16 bar |
| Connection to system () | G 3/8 |
| China RoHS compliance () | Out of scope |
| Connection to radiator () | R 3/8 |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | RLV-S Lock shield 1 |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Lockshield Valves, RLV-S, DN 10, Angle, With o-ring, Internal thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
RLV-S 10 ANGLE, NIPPLE W. O-RING
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
