003H7090

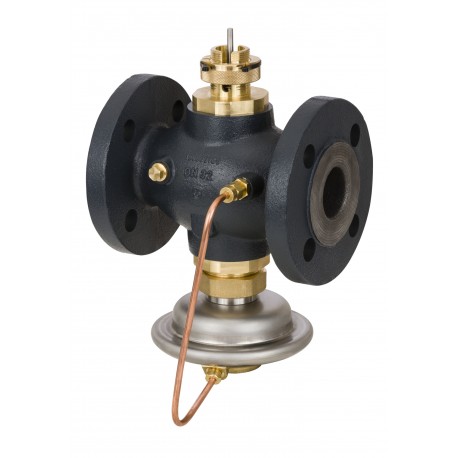

003H7090 DANFOSS HEATING AVQM-WE PN25 50/25/0,2 fla flow/ret
$0.00USD
4664 in stock
Key Specifications
EAN ():5710104094014
Type ():AVQM-W
Volume ():25.392 Liter
Net weight ():13.82 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104094014 |
| Type () | AVQM-W |
| Volume () | 25.392 Liter |
| Net weight () | 13.82 Kilogram |
| Valve size () | DN 50 |
| Gross weight () | 14 Kilogram |
| Product group () | Pressure flow controllers |
| Pressure class () | PN 25 |
| Connection types () | Flange |
| Flow rate [m³/h] () | 14 m³/h |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 25 m³/h |
| UK RoHS compliance () | Out of scope |
| Cavitation factor 25% () | 0.58 |
| Cavitation factor 50% () | 0.52 |
| Cavitation factor 75% () | 0.5 |
| China RoHS compliance () | Out of scope |
| Cavitation factor 100% () | 0.34 |
| Flow rate [m³/h] [Max] () | 14 m³/h |
| Flow rate [m³/h] [Min] () | 0.8 m³/h |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Flow restrictor diff.pressure - dpb [bar] () | 0.2 bar |
Product Description
AVQM-W, PN 25, DN 50, Flow rate [m³/h]: 0.80 - 14.00, Flange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
