In Stock Hot Product
003H6854

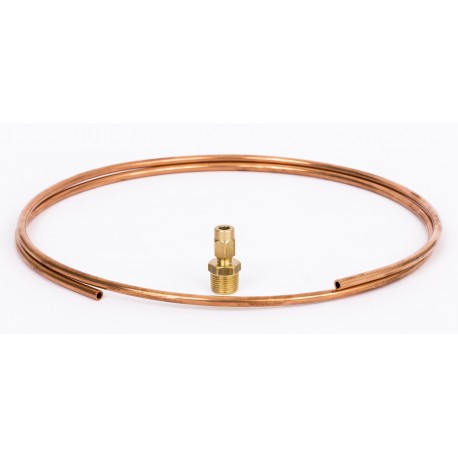

003H6854 DANFOSS HEATING Impulse tube set AV R 1/2"",fi 6x1,5m
$0.00USD
3300 in stock
Key Specifications
EAN ():5702421541586
Type ():Impulse tubes
Volume ():3.538 Liter
Material ():Copper Cu-DHP CW024A H040
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421541586 |
| Type () | Impulse tubes |
| Volume () | 3.538 Liter |
| Material () | Copper Cu-DHP CW024A H040 |
| Net weight () | 0.292 Kilogram |
| Description () | Impulse tube set AV R 1/2##,fi 6x1,5m |
| Length [mm] () | 1500 mm |
| Gross weight () | 0.424 Kilogram |
| Diameter [mm] () | 6 mm |
| Product group () | Accessories - SAC |
| Connection size () | R 1/2 |
| For product type () | AV(P)QM (T) |
| SCIP dossier no. () | 580c7560-1449-4cdc-bc55-240a23211f5a |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Yes with exemptions |
| Pressure nominal [bar] () | 25 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Suitable for valve of diameter [mm] [Max] () | 50 mm |
| Suitable for valve of diameter [mm] [Min] () | 15 mm |
Product Description
Impulse tubes, 6 mm, R 1/2, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Impulse tube set AV R 1/2##,fi 6x1,5m
