003H6669

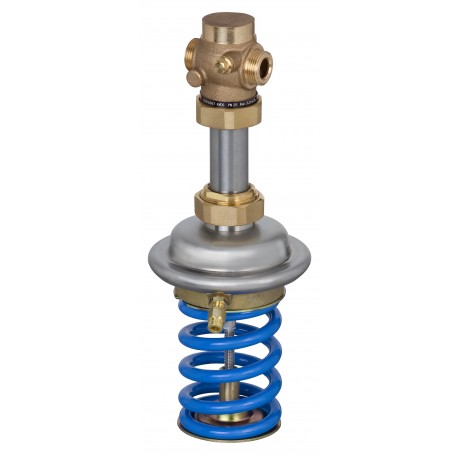

003H6669 DANFOSS HEATING AVDS PN25 25/6,3 1-5 thread flow/return
$0.00USD
4444 in stock
Key Specifications
EAN ():5702421541906
Type ():AVDS
Volume ():10.416 Liter
Function ():Press. reduction controller
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421541906 |
| Type () | AVDS |
| Volume () | 10.416 Liter |
| Function () | Press. reduction controller |
| Net weight () | 4.456 Kilogram |
| Valve size () | DN 25 |
| Application () | District Heating |
| Description () | AVDS PN25 25/6,3 1-5 thread flow/return |
| Flow control () | No |
| Gross weight () | 4.456 Kilogram |
| Diameter [mm] () | 25 mm |
| Product group () | Pressure flow controllers |
| Stem position () | Normally open |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Connection size () | G 1 1/4 A |
| Flow limitation () | No |
| Number of ports () | 2 |
| Connection types () | External Thread |
| Function VSP - P () | Yes |
| Function VSP - Q () | No |
| Function VSP - T () | No |
| Mounting version () | Flow |
| Cavitation factor () | 0.6 |
| Permissible media () | Steam |
| Kvs values [m³/h] () | 6.3 m³/h |
| Medium alternative () | Circulation water |
| PN alternative VSP () | 16 |
| Pressure controller () | Pressure reduction controller |
| Valve body material () | Red bronze CuSn5ZnPb (Rg5) |
| Valve seat material () | Stainless steel, mat. No. 1.4571 |
| Leakage rate [% Kvs] () | 0.05 |
| Cavitation factor 25% () | 0.69 |
| Cavitation factor 50% () | 0.62 |
| Cavitation factor 75% () | 0.6 |
| Cavitation factor 100% () | 0.41 |
| Pressure nominal [bar] () | 25 bar |
| Valve cone DP material () | Stainless steel, mat. No. 1.4122 |
| Actuator diaphragm material () | EPDM |
| Media temperature [°C] [Max] () | 200 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Pressure setting range [bar] [Max] () | 5 bar |
| Pressure setting range [bar] [Min] () | 1 bar |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 10 bar |
| Differential pressure setting [bar] [Max] () | 5 bar |
| Differential pressure setting [bar] [Min] () | 1 bar |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | Adjustable |
Product Description
AVDS, PN 25, DN 25, 1.00 bar - 5.00 bar, External Thread, G 1 1/4 A, Mounting version: Flow
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AVDS PN25 25/6,3 1-5 thread flow/return
