003H6597

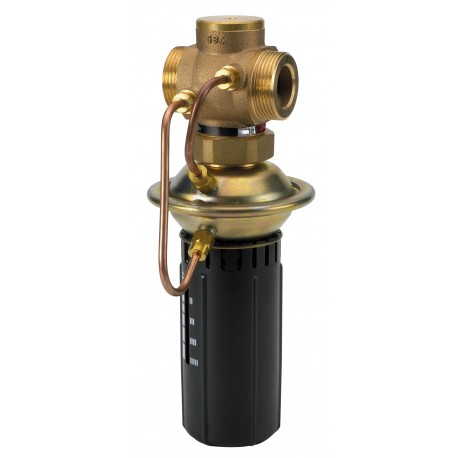

003H6597 DANFOSS HEATING AVPA PN16 20/6,3 0,2-1,0 thread bypass
$0.00USD
4050 in stock
Key Specifications
EAN ():5702421541166
Type ():AVPA
Volume ():4.588 Liter
Function ():Diff. press. relief controller
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421541166 |
| Type () | AVPA |
| Volume () | 4.588 Liter |
| Function () | Diff. press. relief controller |
| Net weight () | 2.074 Kilogram |
| Valve size () | DN 20 |
| Application () | District Heating |
| Description () | AVPA PN16 20/6,3 0,2-1,0 thread bypas |
| Flow control () | No |
| Gross weight () | 2.074 Kilogram |
| Diameter [mm] () | 20 mm |
| Product group () | Pressure flow controllers |
| Stem position () | Normally closed |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 16 |
| Connection size () | G 1 A |
| Flow limitation () | No |
| Number of ports () | 2 |
| Connection types () | External Thread |
| Function VSP - P () | Yes |
| Function VSP - Q () | No |
| Function VSP - T () | No |
| Mounting version () | Bypass |
| SCIP dossier no. () | d82d5b9f-618e-427e-a21f-592d45afaeed |
| Cavitation factor () | 0.6 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 6.3 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 0 |
| UK RoHS compliance () | Out of scope |
| Pressure controller () | Differential pressure relief controller |
| Sealing DP material () | EPDM |
| Valve body material () | Red bronze CuSn5ZnPb (Rg5) |
| Valve seat material () | Stainless steel, mat. No. 1.4571 |
| Leakage rate [% Kvs] () | 0.02 |
| Cavitation factor 25% () | 0.69 |
| Cavitation factor 50% () | 0.62 |
| Cavitation factor 75% () | 0.6 |
| China RoHS compliance () | Out of scope |
| Cavitation factor 100% () | 0.41 |
| Pressure nominal [bar] () | 16 bar |
| Valve cone DP material () | Dezincing free brass CuZn36Pb2As |
| Actuator diaphragm material () | EPDM |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 12 bar |
| Differential pressure setting [bar] [Max] () | 1 bar |
| Differential pressure setting [bar] [Min] () | 0.2 bar |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | Adjustable |
Product Description
AVPA, PN 16, DN 20, 6.30 m³/h, 0.20 bar - 1.00 bar, External Thread, G 1 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AVPA PN16 20/6,3 0,2-1,0 thread bypas
