In Stock Hot Product
003G6062

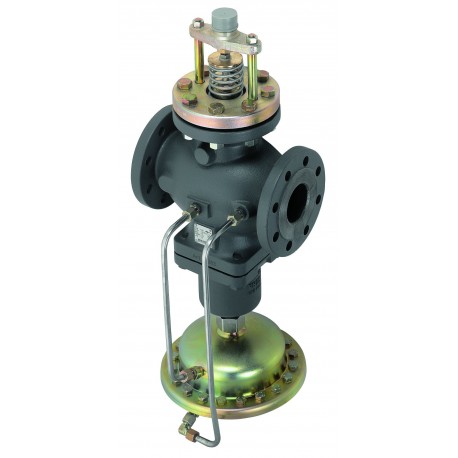

003G6062 DANFOSS HEATING AFQM PN16 250/400 /0,2 flange flow/ret
$0.00USD
3200 in stock
Key Specifications
EAN ():5710104501536
Type ():AFQM
Volume ():785.001 Liter
Function ():Flow controller with int. control valve
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104501536 |
| Type () | AFQM |
| Volume () | 785.001 Liter |
| Function () | Flow controller with int. control valve |
| Net weight () | 351 Kilogram |
| Valve size () | DN 250 |
| Application () | District Heating |
| Description () | AFQM PN16 250/400 /0,2 flange flow/ret |
| Stroke [mm] () | 20 mm |
| Flow control () | Yes |
| Gross weight () | 389.2 Kilogram |
| Diameter [mm] () | 250 mm |
| Product group () | Pressure flow controllers |
| Stem position () | Normally open |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 16 |
| Flow limitation () | Yes |
| Number of ports () | 2 |
| Connection types () | Flange |
| Function VSP - P () | No |
| Function VSP - Q () | No |
| Function VSP - T () | No |
| Mounting version () | Free |
| SCIP dossier no. () | b7b59542-4217-4c5c-96a5-552807d72d74 |
| Cavitation factor () | 0.2 |
| Flow rate [m³/h] () | 280 m³/h |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 400 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 10 |
| UK RoHS compliance () | Out of scope |
| Pressure controller () | No |
| Sealing CV material () | EPDM |
| Sealing DP material () | EPDM |
| Valve body material () | Grey cast iron EN-GJL-250 (GG-25) |
| Valve seat material () | Stainless steel M. No. 1.4021 |
| Actuator size [cm²] () | 250 cm² |
| Leakage rate [% Kvs] () | 0.01 |
| Cavitation factor 25% () | 0.2 |
| Cavitation factor 50% () | 0.31 |
| Cavitation factor 75% () | 0.29 |
| China RoHS compliance () | Out of scope |
| Cavitation factor 100% () | 0.16 |
| Pressure nominal [bar] () | 16 bar |
| Valve cone CV material () | Stainless steel mat. No. 1.4021 |
| Valve cone DP material () | Stainless steel mat. No. 1.4021 |
| Flow rate [m³/h] [Max] () | 280 m³/h |
| Flow rate [m³/h] [Min] () | 56 m³/h |
| SCIP dossier product name () | AFQM DN65-400 |
| Actuator diaphragm material () | EPDM (Rolling, fibre enforced) |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 10 bar |
| Flow restrictor diff.pressure - dpb [bar] () | 0.2 bar |
| Pressure relieve system control valve insert () | Piston |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | None |
Product Description
AFQM, PN 16, DN 250, Flow rate [m³/h]: 56.00 - 280.00, Flange, Mounting version: Free
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AFQM PN16 250/400 /0,2 flange flow/ret
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
