003G5638

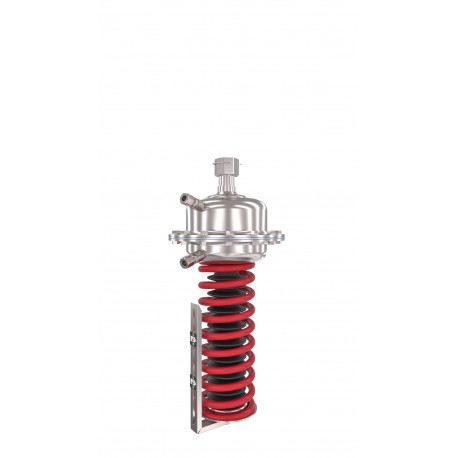

003G5638 DANFOSS HEATING AFD 2 PN40 1,5-4 160cm2 black
$0.00USD
3164 in stock
Key Specifications
EAN ():5710104523248
Type ():AFD 2
Volume ():52.2 Liter
Function ():Press. reduction controller
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104523248 |
| Type () | AFD 2 |
| Volume () | 52.2 Liter |
| Function () | Press. reduction controller |
| Net weight () | 14.5 Kg |
| Application () | District heating and cooling |
| Description () | Pressure reduction actuator |
| Flow control () | No |
| Gross weight () | 15.7 Kg |
| Setting Type () | Adjustable |
| Body material () | Steel, mat. No. 1.0345, zinc plated |
| Product group () | Actuators - Pressure Flow |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Flow limitation () | No |
| Mounting version () | Flow |
| Permissible media () | District heating/cooling circulation water |
| Medium alternative () | Glycolic water up to 30% |
| Diameter [mm] [Max] () | 250 mm |
| Diameter [mm] [Min] () | 65 mm |
| Pressure controller () | Press. reduction controller |
| Actuator size [cm²] () | 160 cm² |
| Pressure nominal [bar] () | 40 bar |
| Actuator diaphragm material () | EPDM (Rolling, fibre enforced) |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Operating pressure [bar] [Max] () | 40 bar |
| Pressure setting range [bar] [Max] () | 4 bar |
| Pressure setting range [bar] [Min] () | 1.5 bar |
| In scope of WEEE and contain batteries () | No |
| Differential pressure setting [bar] [Max] () | 4 bar |
| Differential pressure setting [bar] [Min] () | 1.5 bar |
Product Description
AFD 2, 1.50 bar - 4.00 bar, 160 cm²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reduction actuator
