003G5562

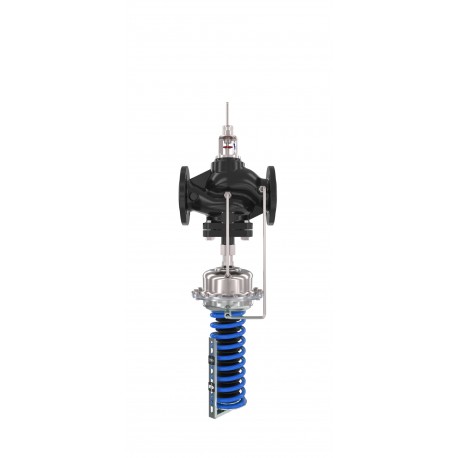

003G5562 DANFOSS HEATING AFQMP2 PN16 100/160 /0,1-1,0 160cm2 blue
$0.00USD
3477 in stock
Key Specifications
EAN ():5714279064599
Type ():AFQMP 2
Volume ():633.6 Liter
Function ():Flow controller with int. control valve
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5714279064599 |
| Type () | AFQMP 2 |
| Volume () | 633.6 Liter |
| Function () | Flow controller with int. control valve |
| Net weight () | 64.5 Kilogram |
| Valve size () | DN 100 |
| Application () | District heating and cooling |
| Description () | Pressure independent control valve |
| Stroke [mm] () | 19 mm |
| Flow control () | Yes |
| Gross weight () | 92.5 Kilogram |
| Diameter [mm] () | 100 mm |
| Product group () | Pressure flow controllers |
| Stem position () | Normally open |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 16 |
| Connection size () | DN 100 |
| Flow limitation () | Yes |
| Number of ports () | 2 |
| Connection types () | Flange |
| Function VSP - P () | No |
| Function VSP - Q () | No |
| Function VSP - T () | No |
| Mounting version () | Free |
| Cavitation factor () | 0.4 |
| Flow rate [m³/h] () | 138 m³/h |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 160 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 25 |
| UK RoHS compliance () | Out of scope |
| Pressure controller () | No |
| Sealing CV material () | EPDM |
| Sealing DP material () | EPDM |
| Valve body material () | Grey cast iron EN-GJL-250 (GG-25) |
| Valve seat material () | Stainless steel, mat. No. 1.4021 |
| Actuator size [cm²] () | 160 cm² |
| Leakage rate [% Kvs] () | 0.01 |
| Cavitation factor 25% () | 0.45 |
| Cavitation factor 50% () | 0.45 |
| Cavitation factor 75% () | 0.4 |
| China RoHS compliance () | Out of scope |
| Cavitation factor 100% () | 0.35 |
| Pressure nominal [bar] () | 16 bar |
| Valve cone CV material () | Stainless steel mat. No. 1.4021 |
| Valve cone DP material () | Stainless steel mat. No. 1.4021 |
| Valve seat DP material () | Stainless steel, mat. No. 1.4021 |
| Flow rate [m³/h] [Max] () | 138 m³/h |
| Flow rate [m³/h] [Min] () | 12 m³/h |
| Actuator diaphragm material () | EPDM (Rolling, fibre enforced) |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Operating pressure [bar] [Max] () | 16 bar |
| Leakage through port max. [% Kvs] () | 0.01 |
| Pressure setting range [bar] [Max] () | 1 bar |
| Pressure setting range [bar] [Min] () | 0.1 bar |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 15 bar |
| Differential pressure setting [bar] [Max] () | 1 bar |
| Differential pressure setting [bar] [Min] () | 0.1 bar |
| Flow restrictor diff.pressure - dpb [bar] () | 1 bar |
| Pressure relieve system control valve insert () | Chamber |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | Adjustable |
Product Description
AFQMP 2, PN 16, DN 100, 0.10 bar - 1.00 bar, Flow rate [m³/h]: 12.00 - 138.00, Flange, Mounting version: Free
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure independent control valve
