In Stock Hot Product
003G1355

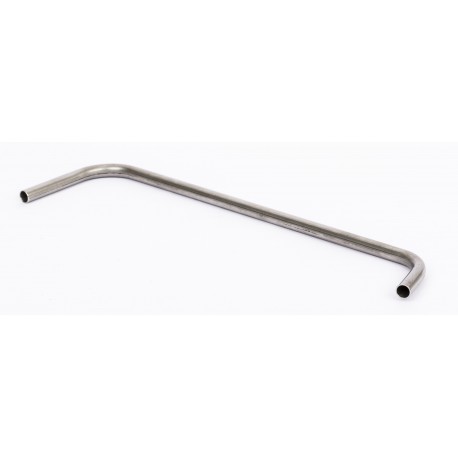

003G1355 DANFOSS HEATING Impulse tubes for AFPB (-F) PN40 15/20
$0.00USD
4150 in stock
Key Specifications
EAN ():5702421812051
Type ():Impulse tubes
Volume ():0.365 Liter
Material ():Stainless steel
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421812051 |
| Type () | Impulse tubes |
| Volume () | 0.365 Liter |
| Material () | Stainless steel |
| Net weight () | 0.075 Kilogram |
| Description () | Impulse tubes for AFPB (-F) PN40 15/20 |
| Gross weight () | 0.075 Kilogram |
| Diameter [mm] () | 10 mm |
| Product group () | Accessories - SAC |
| For valve size () | DN 15DN 20 |
| Connection size () | G 1/4 |
| For product type () | AFPB (-F) |
| SCIP dossier no. () | 4faab7a1-b51b-40d1-b265-5c393b635759 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Yes with exemptions |
| Pressure nominal [bar] () | 40 bar |
| SCIP dossier product name () | AF IMPULSE TUBES (2) |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Suitable for valve of diameter [mm] [Max] () | 20 mm |
| Suitable for valve of diameter [mm] [Min] () | 15 mm |
| Suitable for valve of pressure [bar] [Max] () | 40 bar |
| Suitable for valve of pressure [bar] [Min] () | 16 bar |
Product Description
Impulse tubes, 10 mm, G 1/4, Stainless steel, For product type: AFPB (-F), DN 15; DN 20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Impulse tubes for AFPB (-F) PN40 15/20
