003G1017

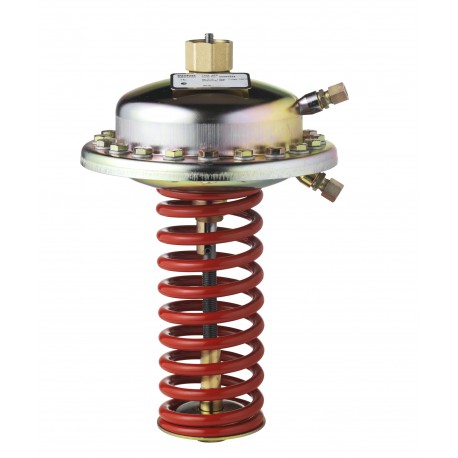

003G1017 DANFOSS HEATING AFP PB25 0,1-0,7 250cm2 yellow
$0.00USD
4975 in stock
Key Specifications
EAN ():5702421808313
Type ():AFP
Volume ():49.39 Liter
Function ():Diff. press. controller
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421808313 |
| Type () | AFP |
| Volume () | 49.39 Liter |
| Function () | Diff. press. controller |
| Net weight () | 11.57 Kilogram |
| Description () | AFP PB25 0,1-0,7 250cm2 yellow |
| Stroke [mm] () | 7 mm |
| Flow control () | No |
| Gross weight () | 12.632 Kilogram |
| Product group () | Actuators - Pressure Flow |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Flow limitation () | No |
| Mounting version () | Free |
| SCIP dossier no. () | 1fc27f33-7222-414d-8ff1-81abdd587564 |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Diameter [mm] [Max] () | 250 mm |
| Diameter [mm] [Min] () | 15 mm |
| Pressure controller () | Differential pressure controller |
| Actuator size [cm²] () | 250 cm² |
| China RoHS compliance () | Out of scope |
| Pressure nominal [bar] () | 25 bar |
| SCIP dossier product name () | AFP/A/B |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Operating pressure [bar] [Max] () | 25 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure setting [bar] [Max] () | 0.7 bar |
| Differential pressure setting [bar] [Min] () | 0.1 bar |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | Adjustable |
Product Description
AFP, PN 25, 0.10 bar - 0.70 bar, 250 cm², Yellow
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AFP PB25 0,1-0,7 250cm2 yellow
