003G1000

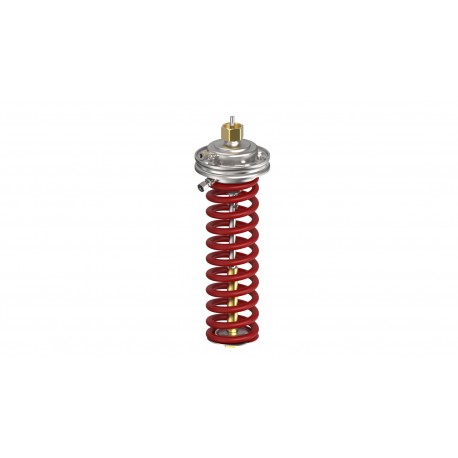

003G1000 DANFOSS HEATING AFD PB25 8-16 32cm2 black
$0.00USD
4716 in stock
Key Specifications
EAN ():5702421808146
Type ():AFD
Colour ():Black
Volume ():27.6 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421808146 |
| Type () | AFD |
| Colour () | Black |
| Volume () | 27.6 Liter |
| Function () | Press. reduction controller |
| Net weight () | 11.77 Kilogram |
| Description () | AFD PB25 8-16 32cm2 black |
| Flow control () | No |
| Gross weight () | 12.649 Kilogram |
| Body material () | Steel, mat. No 1.0338, zinc plated |
| Product group () | Actuators - Pressure Flow |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Flow limitation () | No |
| Mounting version () | Flow |
| SCIP dossier no. () | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Medium alternative () | Glycolic water up to 30% |
| UK RoHS compliance () | Out of scope |
| Diameter [mm] [Max] () | 125 mm |
| Diameter [mm] [Min] () | 15 mm |
| Pressure controller () | Pressure reduction controller |
| Actuator size [cm²] () | 32 cm² |
| China RoHS compliance () | Out of scope |
| Pressure nominal [bar] () | 25 bar |
| SCIP dossier product name () | AFD/A |
| Actuator diaphragm material () | EPDM (Rolling, fibre enforced) |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Operating pressure [bar] [Max] () | 25 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Pressure setting range [bar] [Max] () | 16 bar |
| Pressure setting range [bar] [Min] () | 8 bar |
| In scope of WEEE and contain batteries () | No |
| Differential pressure setting [bar] [Max] () | 16 bar |
| Differential pressure setting [bar] [Min] () | 8 bar |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | Adjustable |
Product Description
AFD, PN 25, 8.00 bar - 16.00 bar, 32 cm², Black
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AFD PB25 8-16 32cm2 black
